Alu RIB 12.5

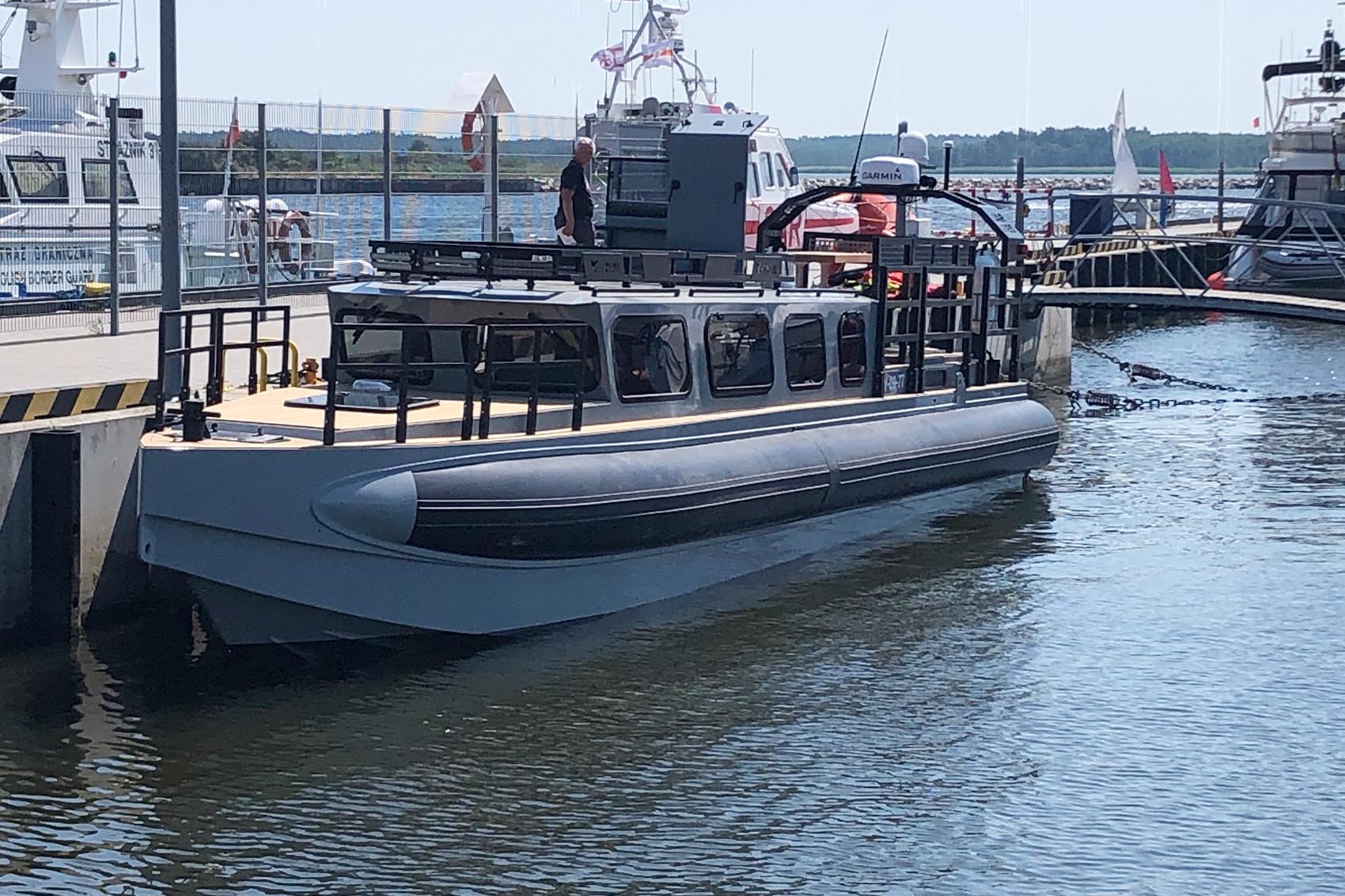

alu rib 12.5 | mooring | tch marine

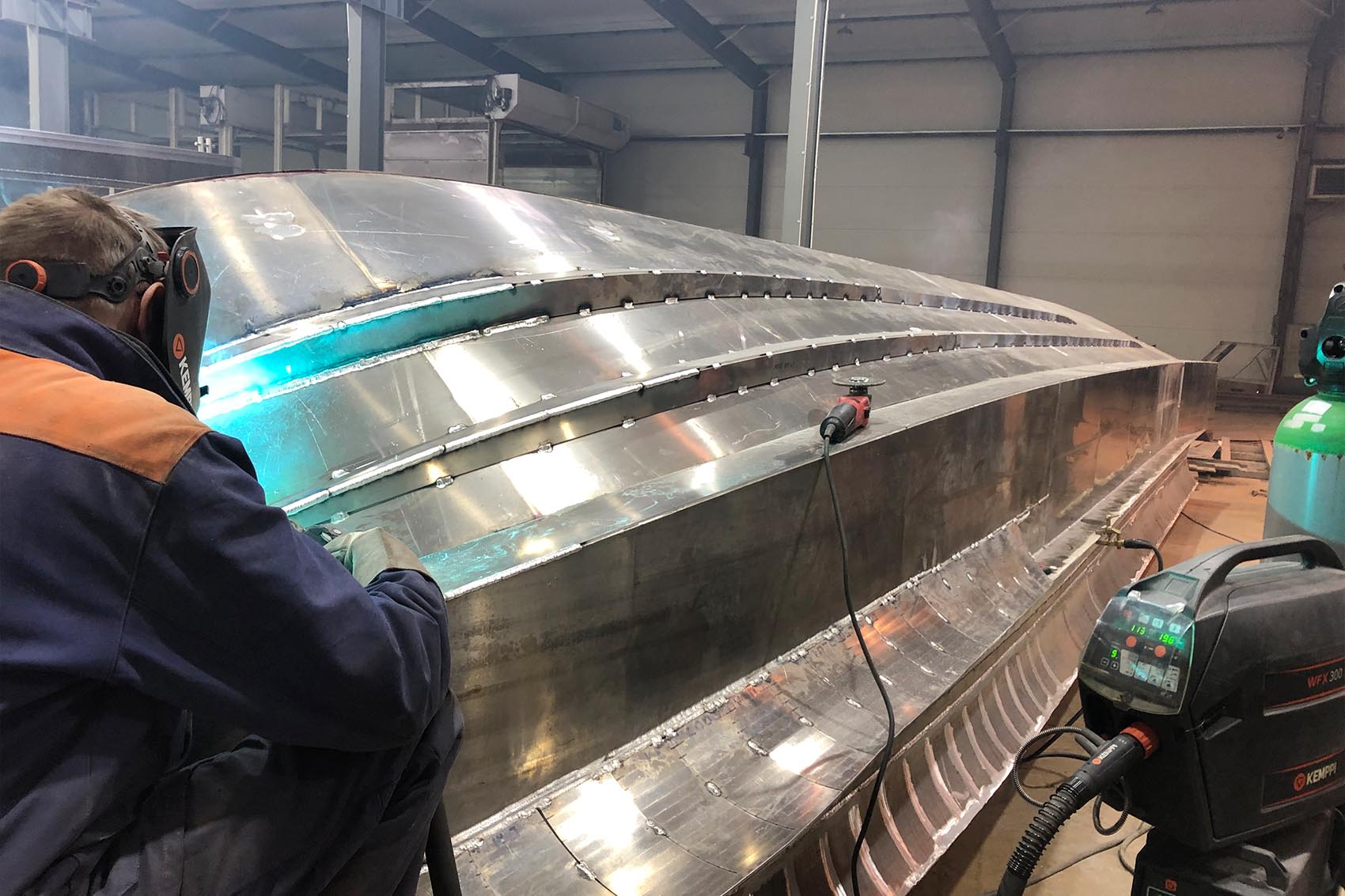

alu rib 12.5 | welding | tch marine

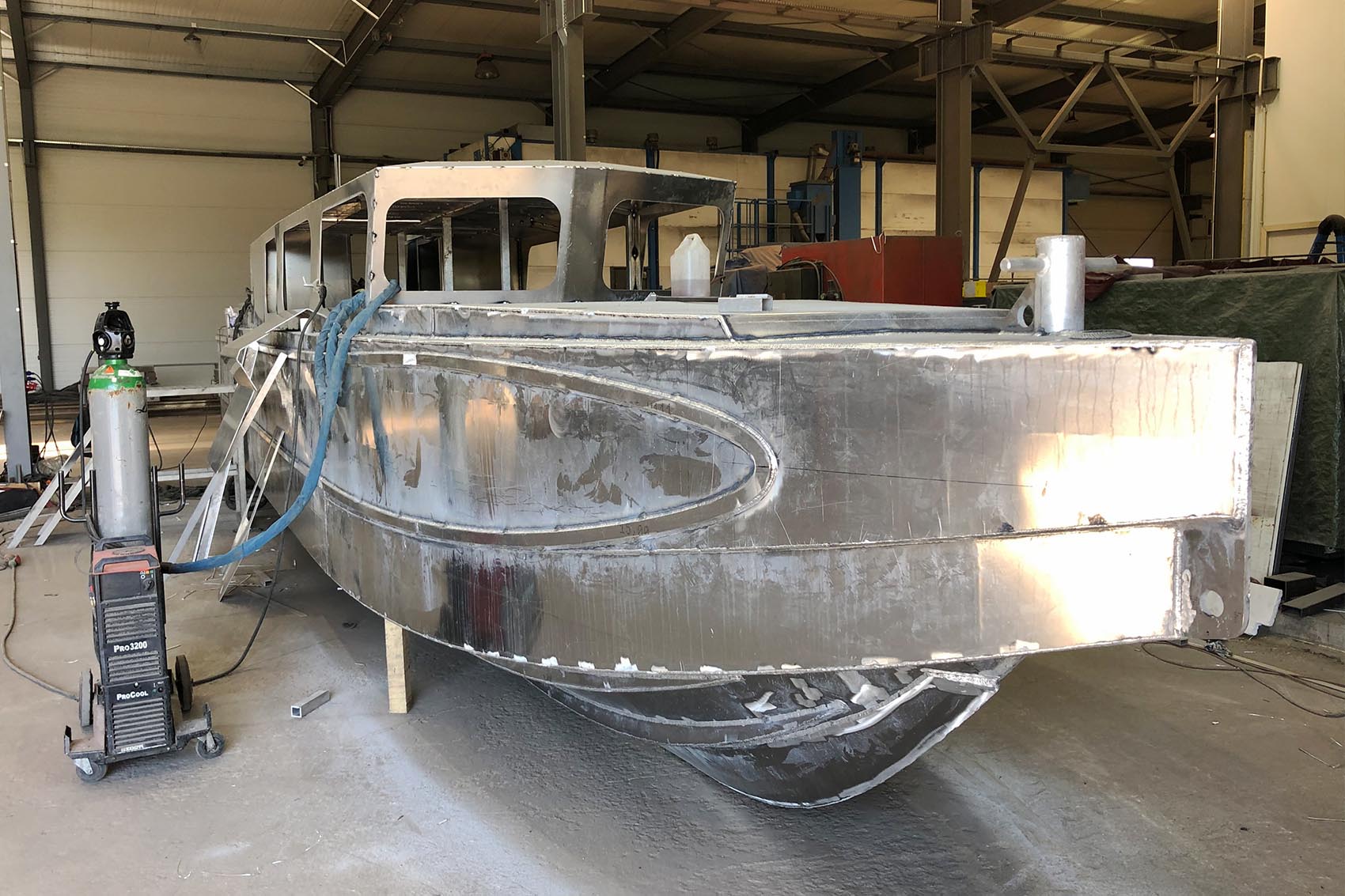

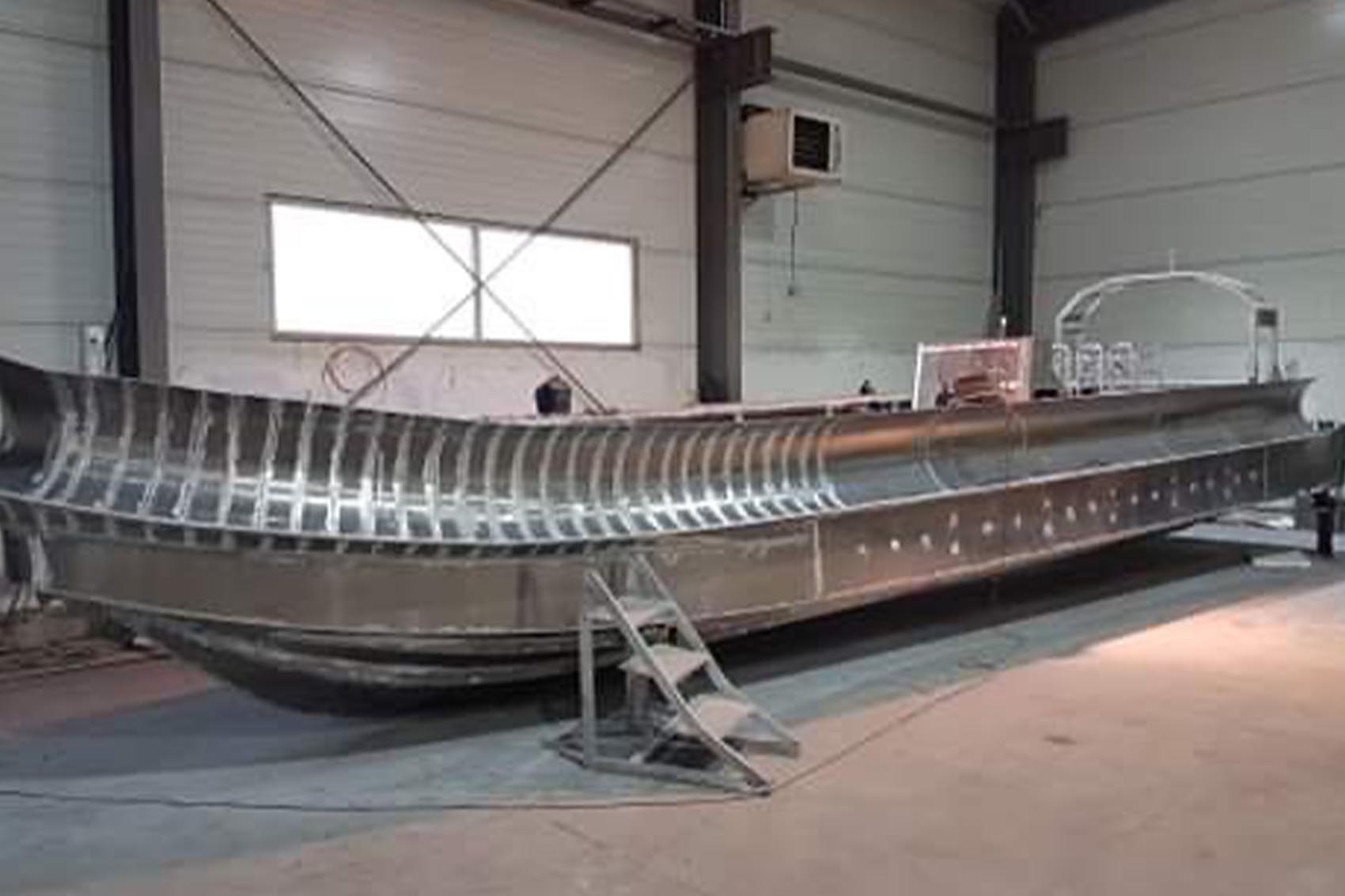

alu rib 12.5 | hull | tch marine
alu rib 12.5 | hull | tch marine

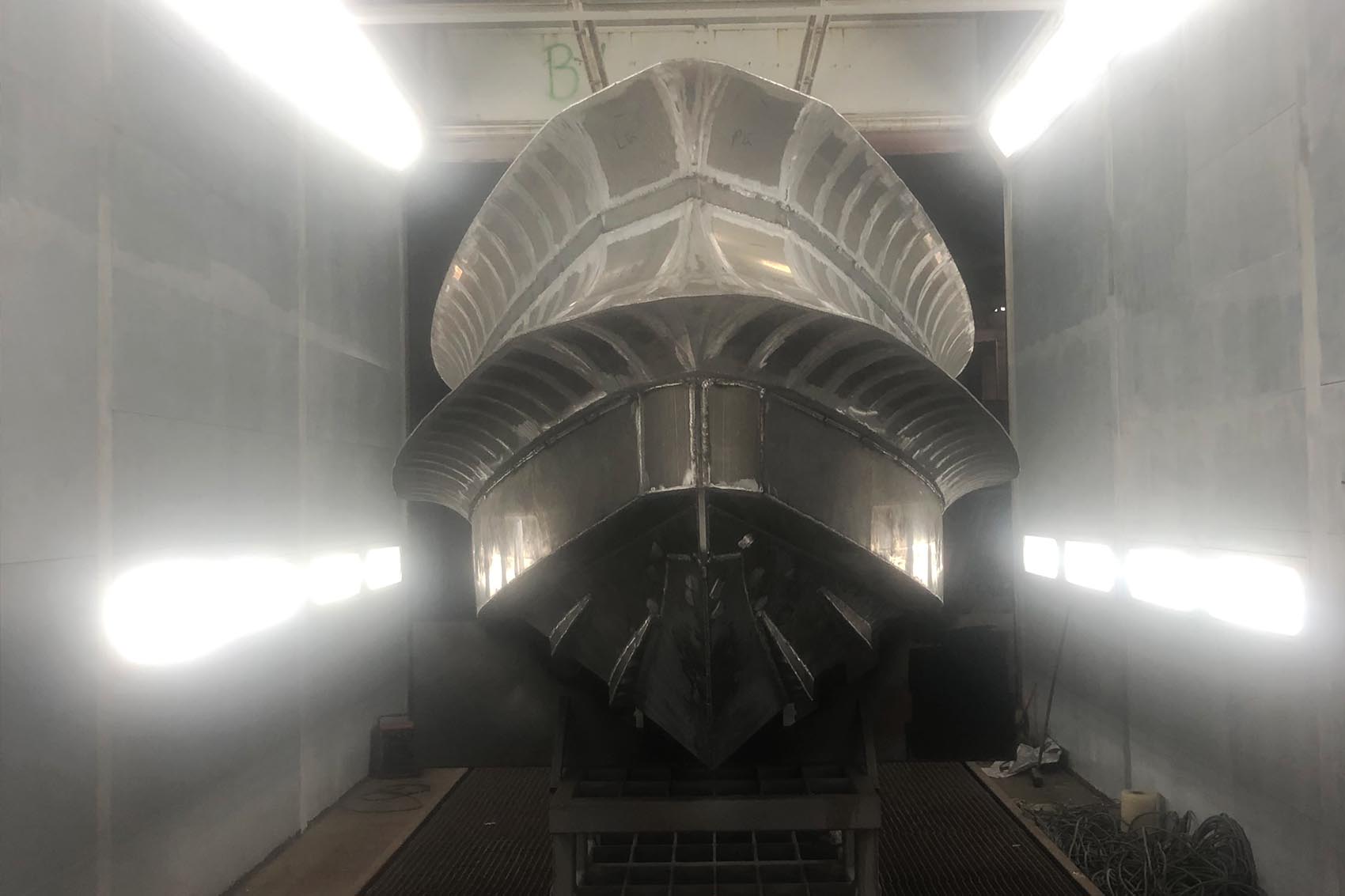

alu rib 12.5 | front | tch marine

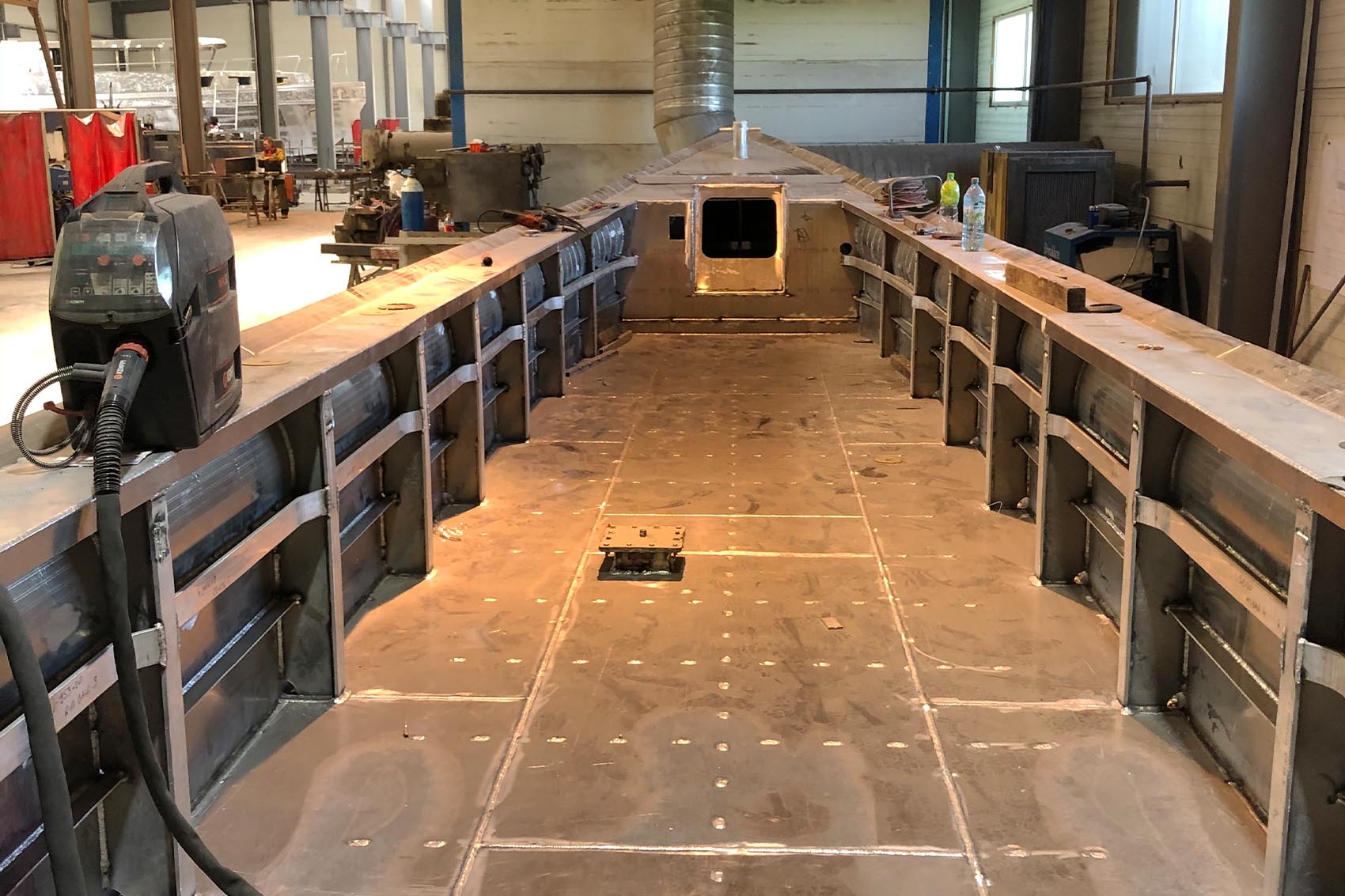

alu rib 12.5 | deck | tch marine
alu rib 12.5 | welding | tch marine

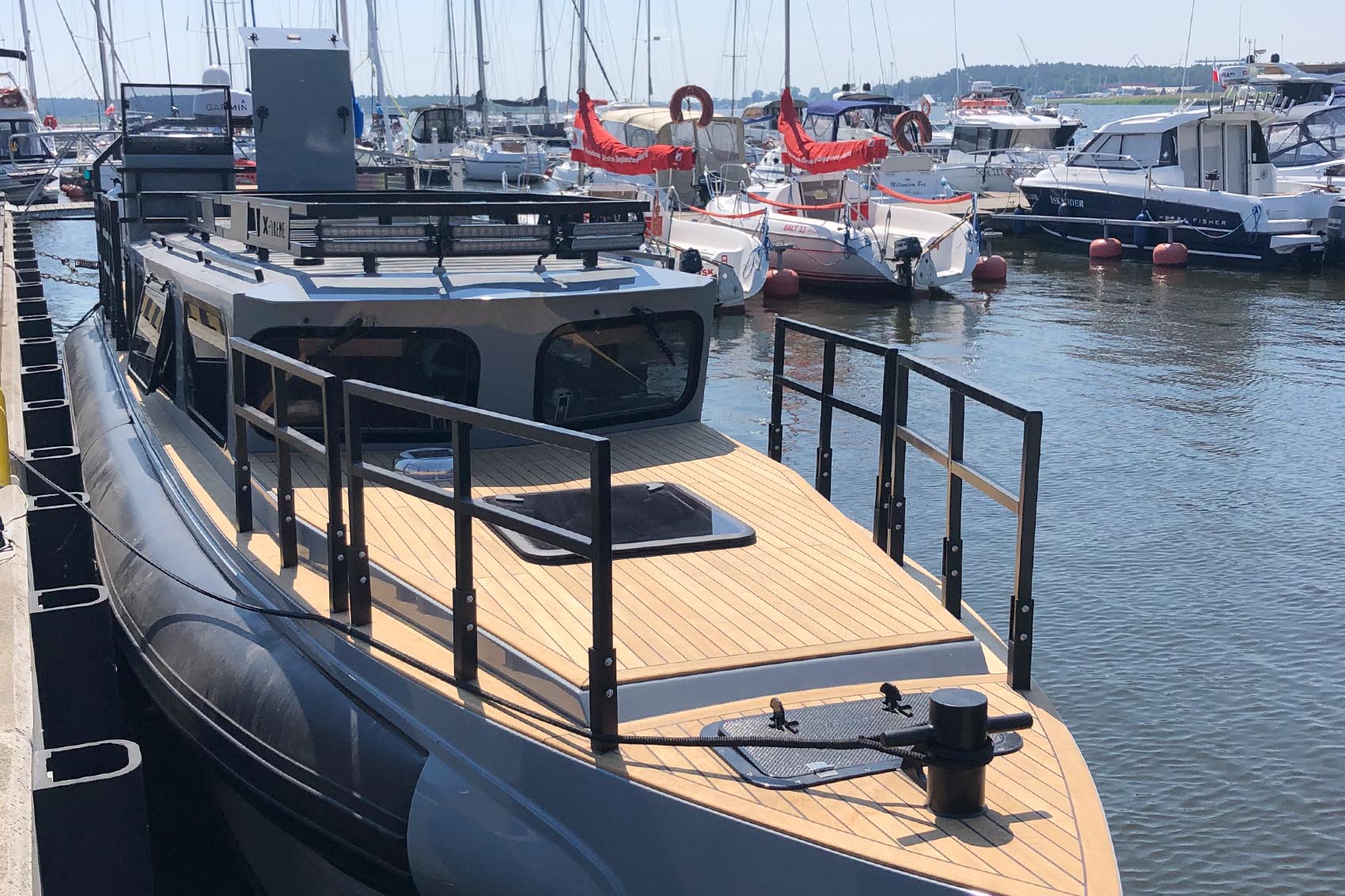

alu rib 12.5 | mooring front | tch marine

This boat is ready for long range transportations on the most heavy duty environment.

The boat can be fitted with Inboard either shaft or sterndrives and outboard. With a well proven planning hull and a slide bow that cuts throw any wave. The tubes inflatable or foam filled give the boat the extra buoyancy to keep the crew and the transported goods afloat in any condition.

Alu RIB 12.5

Length overall 12.30 m
Length on waterline: 10.80 m
Beam overall: 2.85 m
Operational draft (diw with engines vertical): 0.65 m
Highest fixed point above waterline:1.60 m
Highest point when on trailer (mast down):2.70 m
Crew capacity (wheelhouse seats): 2
Passenger capacity (sitting on benches):
Seating total: 12
Start battery: On
Service battery: On
Fuel tank capacity: Long range
Propulsion machinery: On request
Propellors: On Request
Boat weight (fully outfitted, no crew): from 5500 kg
Boat maximum weight (fully outfitted, two crew, full fuel): 10000 kg
